[kW 19 ÷ 85]
NG35 NG70 NG90
[kW 19 ÷ 85]
NG35 NG70 NG90

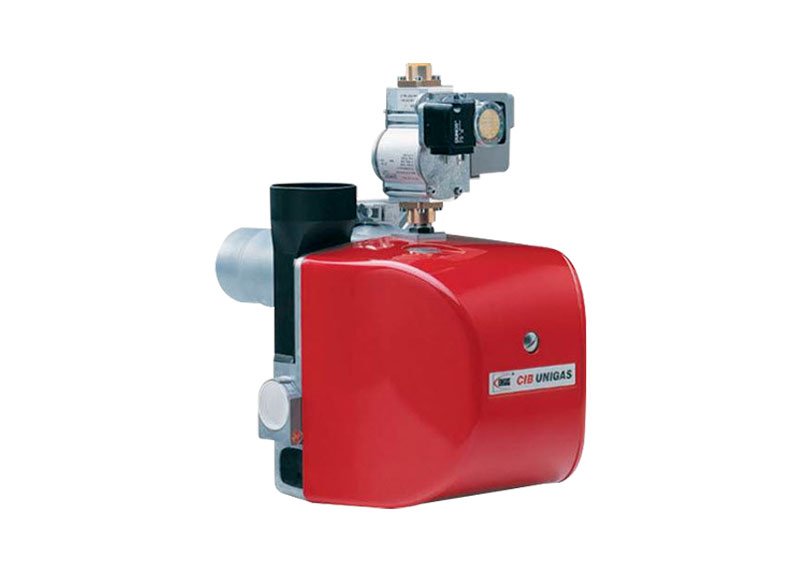

These gas burners, equipped with tangential ventilation, represent, in terms of dimension and capacity, the smallest burners of the new line IDEA - gas Low NOx Class 2 (< 120 mg/kWh) and are available in five different aluminium housing. NG35 burners can be arranged to use external combustion air upon request. In this case the burners will be supplied with an airtight air intake that can be linked outside the location of the installation through a duct with an extension up to ten meters.
Additional charges for LPG, Biogas and other types of gas: quote on request
| Type | Model | Power min. | Power max. | Power supply | Motor Fan |
|---|---|---|---|---|---|
| NG90 | M-.AB.S.99.A.0.15 | 22 kW | 85 kW | 230 V 1N ac | 0.1 kW |
| NG90 | M-.AB.S.99.A.0.20 | 22 kW | 85 kW | 230 V 1N ac | 0.1 kW |
| NG90 | M-.TN.S.99.A.0.15 | 22 kW | 85 kW | 230 V 1N ac | 0.1 kW |
| NG90 | M-.TN.S.99.A.0.20 | 22 kW | 85 kW | 230 V 1N ac | 0.1 kW |
NOTE: The above models differ in the type of ramp connection, regulation and type of control (mechanical/electronic). If in doubt, contact our sales offices.
Additional charges for LPG, Biogas and other types of gas: quote on request
| Type | Model | Power min. | Power max. | Power supply | Motor Fan |
|---|---|---|---|---|---|
| NG70 | M-.AB.S.99.A.0.15 | 19 kW | 70 kW | 230 V 1N ac | 0.1 kW |
| NG70 | M-.TN.S.99.A.0.15 | 19 kW | 70 kW | 230 V 1N ac | 0.1 kW |
NOTE: The above models differ in the type of ramp connection, regulation and type of control (mechanical/electronic). If in doubt, contact our sales offices.
Additional charges for LPG, Biogas and other types of gas: quote on request
| Type | Model | Power min. | Power max. | Power supply | Motor Fan |
|---|---|---|---|---|---|
| NG90 | M-.AB.S.99.A.0.15 | 22 kW | 85 kW | 230 V 1N ac | 0.1 kW |
| NG90 | M-.AB.S.99.A.0.20 | 22 kW | 85 kW | 230 V 1N ac | 0.1 kW |
| NG90 | M-.TN.S.99.A.0.15 | 22 kW | 85 kW | 230 V 1N ac | 0.1 kW |
| NG90 | M-.TN.S.99.A.0.20 | 22 kW | 85 kW | 230 V 1N ac | 0.1 kW |
NOTE: The above models differ in the type of ramp connection, regulation and type of control (mechanical/electronic). If in doubt, contact our sales offices.
